Advanced editing of strokes in Illustrator

Some layers in our detailed map bases have more complex appearances than simple colour fills and strokes. Their appearance can be edited, just like any other layer in Illustrator.

Boundary layers often have a dashed stroke and low opacity.

Stroke panel in Illustrator
Stroke panel in Illustrator – typical settings on a boundary layer

To edit the dash, select the boundary layer, then open the Stroke panel. Here you can change the weight of the stroke and also the length of the dashes and gaps of a boundary line. The Dashed Line settings in the Stroke panel shown here create a boundary with alternating long lines and dots.

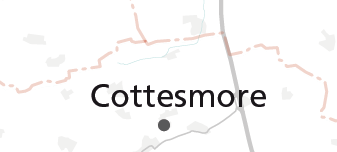

boundary line
The appearance of the dash-dot boundary line on the map

Most of our map bases use rounded caps and corners for strokes. This is because at deep zoom levels, squared caps and corners can take on a jagged, undesirable appearance.

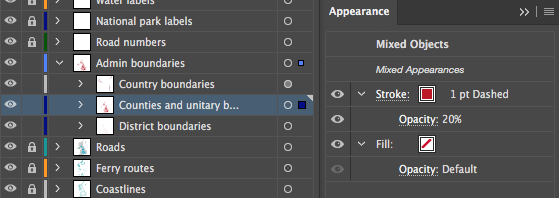

The opacity of a boundary line is best edited in the Appearance panel in Illustrator. Select your boundary layer, then expand the stroke element in the Appearance panel to access the opacity. (Click the chevron.)

Access the opacity of a boundary layer in the Appearance panel rather than the Transparency panel
NOTE: There is a quirk in Illustrator whereby the Transparency panel and Opacity control on the top bar may misleadingly show your layer as having 100% opacity when clearly it hasn’t!

Railway lines are sometimes styled as a double layer on our maps, or a single layer with two strokes. Again, these settings can be accessed and edited in the Appearance panel.

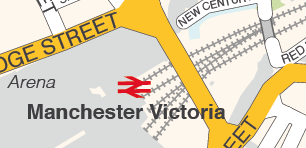

railway styling on map
This is just one type of styling for railways used on some of our maps.

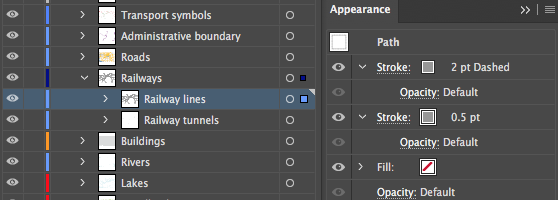

railway double stroke
The railway shown in the map above has a double stroke – the top one dashed, the lower one a simple line – which can be edited in the Appearance panel
